We knew that Raspberry Pi would use its RP2040 in a product, but we never thought it would be this. The $25 Build HAT is an interface between the Raspberry Pi’s 40 pin GPIO and products from various educational Lego kits. So where does the RP2040 fit into this? The RP2040 is used as an interface, controlled over a serial interface (via the GPIO) using a rather splendid Python module that simplifies working with the components.

Raspberry Pi’s Build HAT is the culmination of two years of work between the Raspberry Pi Foundation and Lego Education. Build HAT is designed to carry on from Lego’s block coding language and provide a Python module that enables learners to carry on using the rather expensive Lego kits with a more powerful and expandable language.

Build HAT targets specific Lego kits, namely Spike Prime, Mindstorms and Technic all of which come with their own hubs. We have experience of Lego’s Spike Prime and the hub used in that kit is already a powerful piece of kit. Powered by an STM32 microcontroller, the Spike Prime Hub has six ports for Lego’s LPF2 connectors and is mainly for use with the Spike block coding language, but all we need is a USB cable and a serial connection to unlock a version of MicroPython baked into the board .

With Build HAT, the hard part of making a serial connection in Python is done for us and we can start building Lego powered projects. We took Raspberry Pi’s Build HAT for a spin, learned how to use the Python module and discovered that we can use it with other HATs and Raspberry Pi add-ons.

Build HAT Specifications

Using Build HAT

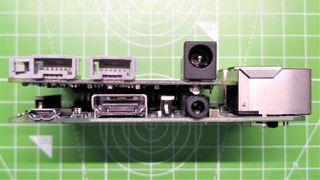

As you can guess from the name, Build HAT is a regular HAT standard add-on designed to be placed directly on top of the GPIO . Before you drop this board on your Raspberry Pi, make use of the included M2.5 9mm spacers, otherwise the DC power jack will be precariously close to the audio / video jack of the Raspberry Pi. If you plan to use another HAT on top of Build HAT, use an extended GPIO header, which sadly not included in the kit.

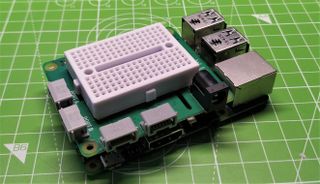

To use a HAT along with Build HAT, I used M2.5 12mm spacers which will keep the board level and the GPIO connections secure. A cutout just above the camera (CSI) connector on the Raspberry Pi means that we can easily use the official Raspberry Pi Camera in our builds. Adding traditional electronics components is possible, The Build HAT has space for a small breadboard to be stuck in place, but this will block access to the camera slot.

Using the Build HAT requires an external DC power source and Raspberry Pi has just the thing. The Build HAT Power Supply, available for an additional $15, provides 8V, 6A (48W max power) which is enough to power both the Raspberry Pi and Build HAT. Taking projects mobile requires the use of a 7.5V battery pack, similar to those used in RC vehicles. You can use your own DC power sources, just make sure that they meet the DC 5521 (5.5 x 2.1 mm) barrel jack

We used a Raspberry Pi 3B running the latest Raspberry Pi OS release as our test machine, but you can use the Build HAT with almost any 40 pin model of Raspberry Pi. The only exception is the Raspberry Pi 400 which cannot be powered via the GPIO.

After installing the Build HAT Python 3 modules, we started off with a simple motor test using a set of Lego Spike Prime motors. The Python library is relatively straightforward and within a few minutes we had motors running and variable speed control working. But what else can we do?

The Build HAT Python library has compatibility with a range of Lego sensors and, looking in our box of Lego Spike Prime parts, we found sensors compatible with ColorSensor, DistanceSensor and ForceSensor. The Lego Spike Prime color sensor uses reflected light to determine the color of an object and output RGB / HSV color values which match. The ColorSensor Python class has an interesting function which can return a named color, useful in the classroom for students not familiar with RGB / HSV.

The distance sensor works in much the same manner as an HC-SR04 ultrasonic sensor. It sends a pulse of ultrasound from a “trigger” emitter and then waits for the reflected pulse to be received by an “echo” sensor. If we use a little math, we have the distance. These types of sensors are used mainly with robots, giving a simple means to sense and navigate.

The final sensor we tested was the force sensor, a simple plunger that can register quick taps or long presses. The force sensor can be used for simple digital on / off input, or the analog force sensor inside the unit can measure up to 10 Newtons of force. We elected to test a simple on / off input and had no trouble using it as a simple trigger. Taking it a little further, we were able to measure the force applied to the sensor and use that input as a means to control the speed of a motor.

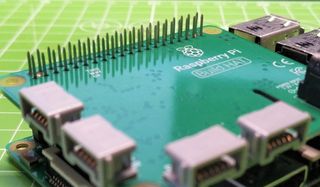

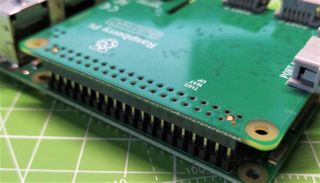

The Build HAT has a passthrough GPIO header which enables GPIO extension headers to extend through the board, allowing another board to be used. We tried a handful of boards and had some mixed results, which all boiled down to which GPIO pins were being used. If you plan to use Build HAT with other cards, consult pinout.xyz to ensure that there are no pin clashes. We read through the Build HAT manual and noted that it uses GPIO 0/1, 4, 14 and 15. GPIO 14 and 15 are our serial connection to control the onboard RP2040.

We tested two of Pimoroni’s NeoPixel boards, Unicorn HAT and Unicorn pHat and they failed to work. They both use GPIO 18 to communicate NeoPixel control data, and we note that this is not one of the pins used by Build HAT, so there must be something else happening behind the scenes. If we were to use a string of NeoPixels, instead of a board, then we could specify which GPIO to use.

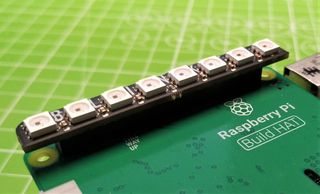

We were determined to have some RGB LEDs light up and so we used Pimoroni’s Blinkt which uses APA102 (DotStar) LEDs and built a rig to detect the color of an object. Pressing the force sensor triggers the color sensor to turn on, take a reading and then store the value in three variables (r,g,b) which are then passed to Blinkt which shows the color across all eight LEDs.

Use Cases for Build HAT

The Raspberry Pi Build HAT is designed for those who already have compatible kits, typically educational institutions and outreach organizations. Lego components don’t come cheap. A full Lego Spike Prime kit is around $340 or you can buy a Lego Spike Expansion set for $110 that comes with a single motor, a color sensor and lots of Lego bricks. Build HAT is compatible with Lego Mindstorms, which again is a sizable investment. The cheapest means to get Lego motors is via Lego Technic, but these motors still retail for $40 each.

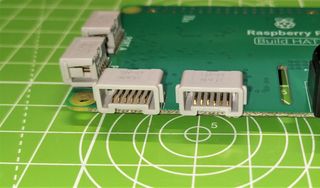

Build HAT has only four LPF2 connectors, two less than the official Spike Prime Hub. This isn’t a deal breaker. With four LPF2 connectors we can connect two motors and two sensors, which are plenty for a basic robot. But given the plethora of Lego components compatible with this connector, it would’ve been great to match the number provided by the Spike Prime Hub. It would also be great if there were Lego compatible studs that we could attach Lego bricks too. This omission is not a deal breaker as we can pick up Lego compatible Raspberry Pi cases for around $15, as we did to embed our test project into a Lego build.

Lego has its own block based coding language, Spike, which works with Lego’s hub device to interface with sensors and motors. While powerful, the Spike language is limited, so the inclusion of a Build HAT Python module is a smart move. The module extends the reach of Lego’s kits to more advanced coders, while enabling the huge ecosystem of Raspberry Pi HATs, including many of the best Raspberry Pi HATs , and Python projects to be used with Lego.

So what can we make with Build HAT? With the power of Lego’s interlocking bricks and the ease at which we can interface with sensors and motors we can make robots, M&M sorting rigs, and even automate our existing Lego models (we are looking at our Lego R2-D2 with glee).

Bottom Line

For $25, the Raspberry Pi Build HAT is a good investment but only if you already have, or can get hold of the compatible Lego kits for a good price. Extending the ease of use afforded by Lego, the Python module is easy to use and provides an advanced path for students to follow. If you are careful with your choice of HATs, then Build HAT can easily be used to augment your Raspberry Pi projects.
