The competition to get into PC's is tough in the 750-850W range; as you can see clearly in our best power supplies ranking, Seasonic and Corsair dominate. Fractal Design tries to fight back, though, with the Ion+ Platinum 760W, which achieves good performance and keeps its noise output levels low. The cherry on top is the modular cables, which are highly flexible. Fractal Design managed to keep the price down, and still offer a warranty period as high as competitors like Corsair's RM750x and Seasonic's Focus Plus Platinum 750 .

We have already evaluated three members of the Ion+ line, the 560P , 660P and 860P , so it was high time to take a look at the second strongest member of the series, the 760P. All Ion+ units use a High Power platform that has good build quality and offers performance levels that meet the competition. The main advantages of the Ion+ 760P, besides its high-efficiency levels (80 Plus Platinum and Cybenetics ETA-A), are the quality FDB fan, the flexible modular cables and the electrolytic caps that High Power used, which are provided by Japanese manufacturers.

The Ion+ 760P has both the capacity and the required EPS connectors to support high-end mainboards for both Intel and AMD processors. With the release of the AMD X570 mainboards,  the era of the single EPS PSUs is long gone, as the majority of these boards require one EPS (8-pin) and one ATX12V (4-pin) while the high-end boards need a pair of EPS connectors. We were complaining for quite some time now when we found  a mid-capacity PSU with a single EPS connector, and most brands and manufacturers were saying that more would be overkill. At the same time, four PCIe connectors look normal even in 550W and 650W PSUs, even though most users don't install more than one GPU in their systems. Well, the times have changed, and it is highly preferable to have double EPS connectors instead of more than two PCIe connectors in the 550W-650W range.

Specifications

Power Specifications

Cables & Connectors

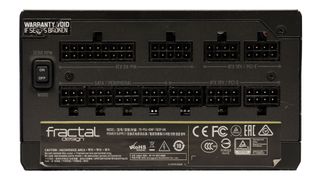

The strong advantage of the cables is that they are super flexible, so cable management and routing will be much easier compared to PSUs with stiff cables, that feature inline caps. Another advantage is that the cables are long, especially the EPS one. Moreover, there are two EPS connectors on dedicated cables, along with six PCIe, which are hosted on three cables. The only downside is the short distance between the peripheral connectors, which should be 150 mm, at least.

Component Analysis

We strongly encourage you to have a look at our PSUs 101 article , which provides valuable information about PSUs and their operation, allowing you to better understand the components we're about to discuss.

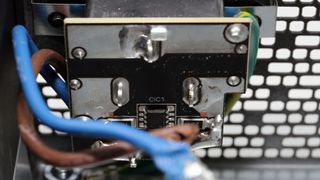

Fractal Design cooperated with High Power for the Ion+ Platinum PSU line. This is the same platform used in the Thermaltake Toughpower Grand RGB Gold line with some modifications which make it even better. For example, there is proper inrush current protection now, which means less stress for your home's electrical infrastructure.

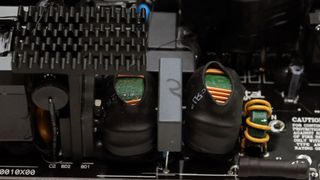

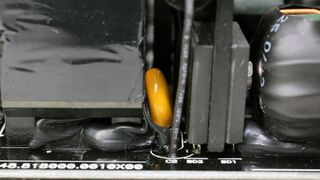

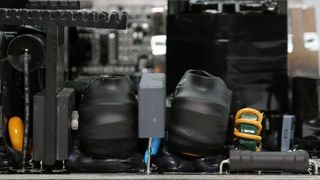

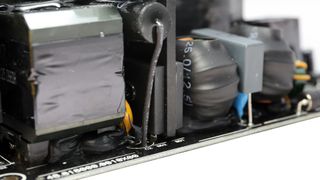

The transient filter has all the required components, but our EMC pre-compliance tests will show how effective they are because the design matters the most here.

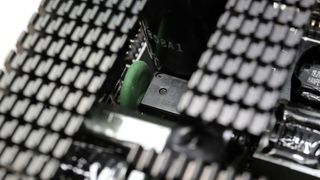

There are two powerful bridge rectifiers, able to handle up to 30A of current if required.

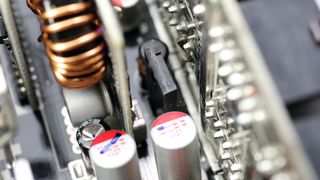

The APFC converter uses two Infineon FETs and a single boost diode, provided by the same manufacturer. The bulk caps are by Rubycon and have enough capacity, to provide a (much) longer than 17ms hold-up time.

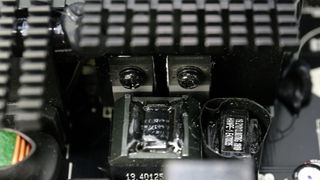

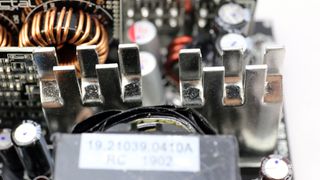

The main switching FETs are provided by Infineon, and they are installed in a half-bridge topology.

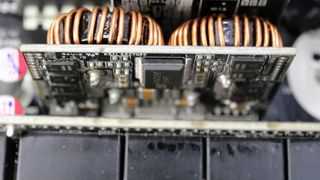

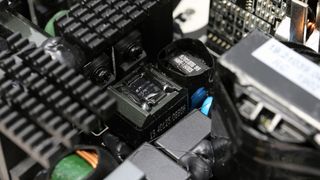

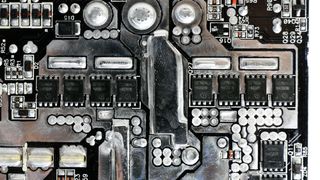

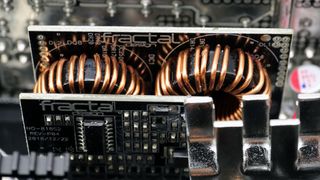

The FETs that regulate the +12V rail are installed on the solder side of the PCB. Eight Infineon FETs are used, in total. Moreover, a pair of VRMs generates the minor rails.

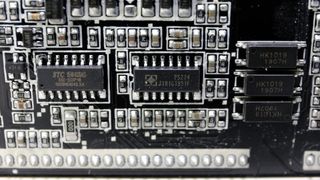

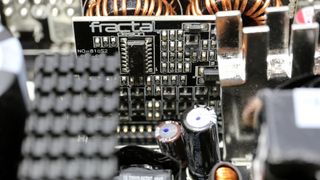

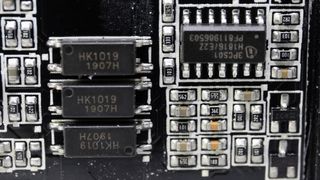

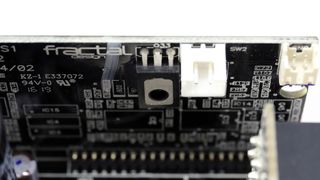

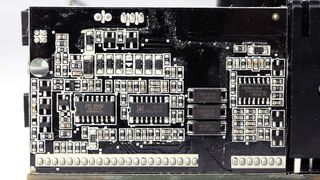

A pretty large daughter-board hosts several interesting parts, including the supervisor IC, a SITI PS224, and an STC 15W408AS microcontroller.

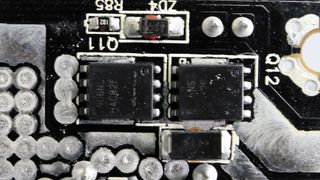

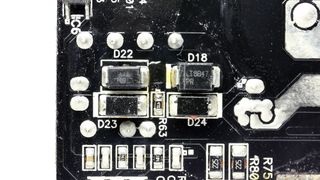

The 5VSB rail uses a pair of FETs and an SBR, on its secondary side and the standby PWM controller is an Excelliance MOS Corp EM8569.

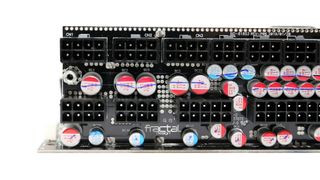

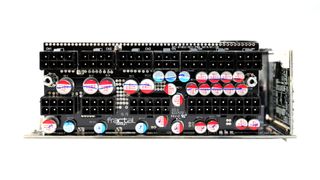

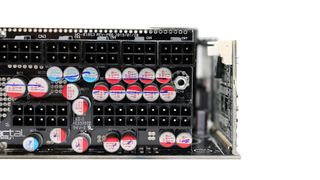

Lots of polymer caps are installed on the face of the modular board.

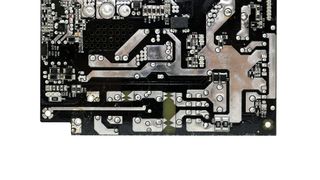

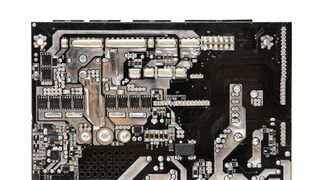

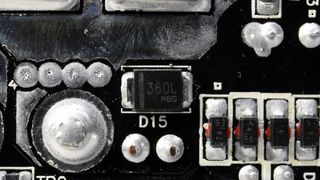

The soldering quality is impeccable. High Power did a very good job in this regard.

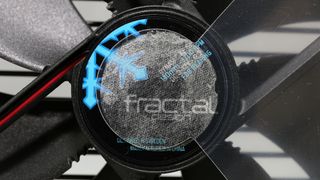

Fractal Design used a high-quality FDB fan in this unit, with a low start-up voltage which allows it for minimal noise output at low RPM.
