Mushkin’s Helix-L is an entry-level SSD through and through. It’s pretty cheap, comes with a 3-year warranty, and it features a DRAMless controller architecture. Even so, it can still deliver a more-than-acceptable level of performance for gamers and mainstream users alike.
Mushkin’s Helix-L is marketed toward budget-conscious gamers with its DNA theme and pricing -- the 1TB model sells for just $107. It's powered by Silicon Motion’s SM2263XT PCIe 3.0 x4 NVMe SSD controller, and our sample features Micron’s 64L TLC NAND flash. This combo lacks DRAM, but resourcefully utilizes Host Memory Buffer, a feature of the NVMe protocol to aid performance instead.
This feature uses a tiny 64MB portion of the host’s DRAM to cache the SSD’s FTL mapping table for better performance than without it. It’s a big improvement over non-HMB designs and can help deliver surprisingly good performance in various tasks.
Specifications
| Product | Helix-L 250GB | Helix-L 500GB | Helix-L 1TB |
|---|---|---|---|
| Pricing | $37.99 | $58.99 | $106.99 |
| Capacity (User / Raw) | 250GB / 256GB | 500GB / 512GB | 1000GB / 1024GB |
| Form Factor | M.2 2280 | M.2 2280 | M.2 2280 |
| Interface / Protocol | PCIe 3.0 x4 / NVMe 1.3 | PCIe 3.0 x4 / NVMe 1.3 | PCIe 3.0 x4 / NVMe 1.3 |
| Controller | SMI SM2263XT | SMI SM2263XT | SMI SM2263XT |
| DRAM | HMB | HMB | HMB |
| Memory | Micron 64L TLC | Micron 64L TLC | Micron 64L TLC |
| Sequential Read | 2,010 MBps | 2,105 MBps | 2,110 MBps |
| Sequential Write | 1,250 MBps | 1,670 MBps | 1,700 MBps |
| Random Read | 200,000 IOPS | 240,000 IOPS | 240,000 IOPS |
| Random Write | 260,000 IOPS | 260,000 IOPS | 260,000 IOPS |
| Encryption | N/A | N/A | N/A |
| Endurance | 150 TBW | 300 TBW | 600 TBW |
| Part Number | MKNSSDHL250GB-D8 | MKNSSDHL500GB-D8 | MKNSSDHL1TB-D8 |
| Warranty | 3-Years | 3-Years | 3-Years |
Mushkin’s Helix-L is rated for speeds of up to 2.1 GBps read and 1.7 GBps write at the highest (1TB) capacity. The performance takes a slight hit when looking at the 250GB model though. That model is only rated to 2 GBps read and 1.25 GBps write. Still, that’s much higher than any SATA SSD. Random 4K performance is rated for up to 240,000 / 260,000 read / write IOPS. The 250GB model again is rated just slightly lower, at up to 200,000 IOPS read.
The warranty length is a rather standard at just 3-years, but the drive has endurance figures that match both the Samsung 970 EVO and WD Black SN750 . As well, it comes with the standard support for TRIM (via NVM Deallocate), S.M.A.R.T. data reporting, secure erase via the Format NVM command.
Mushkin doesn’t provide the end-user an SSD Toolbox for support. But as nice as that feature is to have, it's not really a necessity. There is plenty of freeware that can cover mainstream cloning and monitoring needs. You do get a Mushkin Enhanced case sticker in the box, however.
A Closer Look

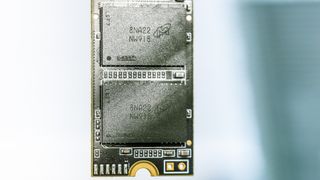

The Mushkin Helix-L is an M.2 2280 form factor SSD that comes either a single- or double-sided, depending on your luck of the draw. Our sample was single-sided and utilizes Micron’s 64L TLC to deliver responsive performance.

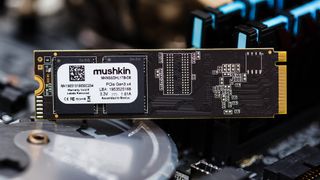

Aesthetically, the Helix-L features a black PCB. The DNA sticker on top of the drive is more attractive than most we've seen on M.2 SSDs, but drives with heatsinks usually look better.
